2 Layer PCB Board Rigid Printed Circuit Board For Electronic Musical Instruments

Ask Lasest Price
Brand Name :	TECircuit
Model Number :	TEC0227
Certification :	UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH.
Price :	USD 1.99 ~ USD9.99/pcs
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50000 pcs/month
Delivery Time :	5-15 wotk days

Add to Cart

Product Details
Company Profile

2 Layer PCB Board Rigid Printed Circuit Board For Electronic Musical Instruments

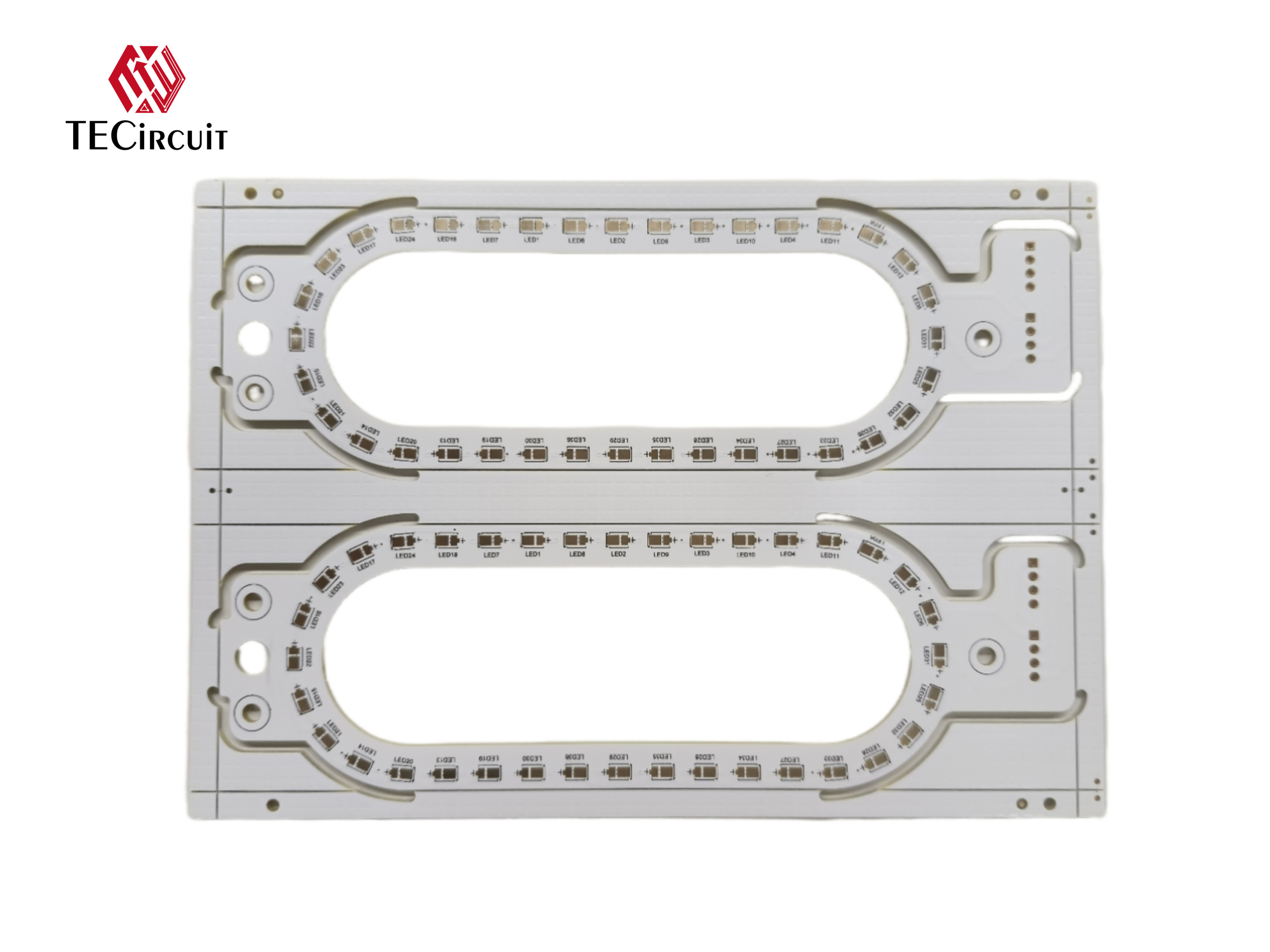

Product Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

Synthesizers:
- Used in analog or digital synthesizers, providing the necessary circuitry for sound generation and manipulation.
Electric Guitars:
- Integrated into effects pedals and electronic components of electric guitars, enhancing sound effects and processing capabilities.
Drum Machines:
- Employed in electronic drum kits and drum machines, facilitating sound triggering and audio processing.
Keyboard Instruments:
- Found in MIDI keyboards and digital pianos, enabling sound synthesis and MIDI transmission.
Samplers:
- Used in sampling devices that capture and manipulate audio, providing essential processing capabilities.
Audio Interfaces:
- Integrated into devices that connect musical instruments to computers, allowing for recording and sound editing.
Portable Music Devices:
- Applied in handheld devices such as pocket synths or loopers, providing easy portability and functionality.
Effects Units:
- Used in various audio effects units, including reverb, delay, and modulation effects, enhancing sound manipulation capabilities.
DIY Instruments:
- Popular in hobbyist and DIY electronic musical instruments, allowing for custom designs and functionality.
Educational Tools:
- Integrated into educational musical instruments that teach sound synthesis and music production, fostering learning in music technology.

Product Features

Compact Design:
- The 2-layer PCB configuration allows for a smaller footprint, making it ideal for portable electronic musical instruments.
Cost-Effective Manufacturing:
- Generally less expensive to produce than multi-layer boards, making it a budget-friendly choice for instrument manufacturers.
Simplicity:
- Fewer layers simplify the design process and can enhance reliability while reducing potential failure points.
Good Signal Integrity:
- Suitable for low-frequency audio signals, providing clear sound quality and minimal interference.
Durable Construction:
- Designed to withstand physical handling and environmental factors, ensuring longevity in various performance settings.
Easy Assembly:
- The simpler design allows for straightforward assembly and soldering, facilitating faster production times.
Integrated Components:
- Can host a variety of components such as microcontrollers, audio processors, and connectors, enabling versatile functionality.
Thermal Management:
- Layouts can be optimized for heat dissipation, which is crucial for maintaining performance in high-power applications.
Modularity:
- Allows for modular designs, enabling easy upgrades or replacements of specific components without a complete redesign.
Customizable Layout:
- Offers flexibility in component placement, allowing designers to optimize for specific instrument functions.

FAQ

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

Product Description

Specification:
PCB layers:	1-42layers
PCB materials:	CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size:	620mm*1100mm
PCB certificate:	RoHS Directive-Compliant
PCB Thickness:	1.6 ±0.1mm
Out Layer Copper Thickness:	0.5-5oz
Inner Layer Copper Thickness:	0.5-4oz
PCB max. board thickness:	6.0mm
Minimum Hole Size:	0.20mm
Minimum Line Width/Space:	3/3mil
Min. S/M Pitch:	0.1mm(4mil)
Plate Thickness and Aperture Ratio :	30:1
Minimum Hole Copper:	20µm
Hole Dia. Tolerance(PTH):	±0.075mm(3mil)
Hole dia. Tolerance(NPTH):	±0.05mm (2mil)
Hole Position Deviation:	±0.05mm (2mil)
Outline Tolerance:	±0.05mm (2mil)
PCB solder mask:	Black, white, yellow
PCB surface finished:	HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend:	White
E-test:	100% AOI, X-ray, Flying probe test.
Outline:	Rout and Score/V-cut
Inspection Standard:	IPC-A-610CCLASSII
Certificates:	UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports:	Final Inspection, E-test, Solderability Test, Micro Section and More
