Multilayer Rigid High Frequency PCB Board For In-Car Entertainment Systems

Ask Lasest Price
Brand Name :	TECircuit
Model Number :	TEC0164
Certification :	UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH
Price :	USD 1.99 ~ USD9.99/pcs
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50000 pcs/month
Delivery Time :	5-15 wotk days

Add to Cart

Product Details
Company Profile

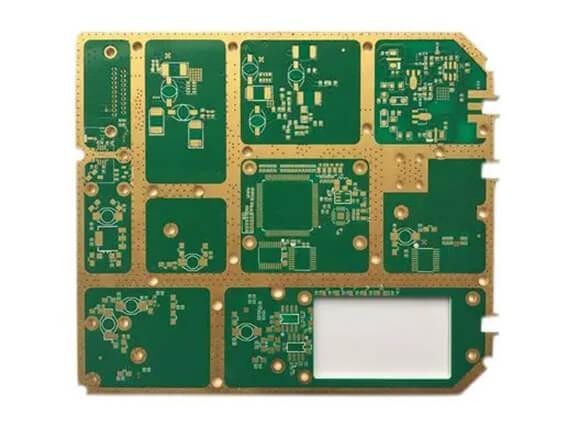

Multilayer Rigid High Frequency PCB Board For In-Car Entertainment Systems

Product Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

Low Loss Dielectric Materials:
- Made from materials with low dielectric loss to ensure minimal signal degradation, essential for high-quality audio and video performance.
High Precision Design:
- Requires tight tolerances and high-quality manufacturing to maintain performance characteristics in demanding automotive environments.
Controlled Impedance:
- Designed to maintain specific impedance levels to prevent signal reflections and ensure efficient power transfer.
Multi-layer Construction:
- Often utilizes multi-layer designs to optimize routing for high-frequency signals and reduce electromagnetic interference (EMI).
Thermal Management:
- Capable of dissipating heat effectively to ensure reliable operation of high-power audio and video components.
Enhanced Signal Integrity:
- Supports high-speed data transmission with minimal loss, critical for effective performance of entertainment systems.
Durability:
- Built to withstand harsh automotive conditions, including temperature extremes, vibrations, and exposure to moisture.
Regulatory Compliance:
- Designed to meet automotive industry standards for safety and performance, ensuring dependable operation.
Customizable Designs:
- Can be tailored to meet specific in-car entertainment requirements, allowing for unique layouts and configurations.
Ease of Integration:
- Compatible with standard automotive components and systems, facilitating seamless integration into existing vehicle architectures.

Product Features

Low Dielectric Loss:
- Made from materials with low dielectric loss to minimize signal degradation, ensuring effective communication at high frequencies.
High Precision Design:
- Requires tight tolerances and high-quality manufacturing to maintain signal integrity and performance in critical applications.
Controlled Impedance:
- Designed to maintain specific impedance levels (commonly 50 ohms), preventing signal reflections and ensuring efficient power transfer.
Multi-layer Construction:
- Often utilizes multi-layer designs to optimize routing, reduce electromagnetic interference (EMI), and provide shielding for sensitive components.
Thermal Management:
- Capable of dissipating heat effectively to ensure reliable operation of high-power components in demanding environments.
Enhanced Signal Integrity:
- Supports high-speed data transmission with minimal loss, critical for effective communication in automation systems.
Robustness and Durability:
- Built to withstand harsh industrial conditions, including temperature extremes, vibrations, and exposure to chemicals.
Regulatory Compliance:
- Designed to meet industry standards for safety and performance, ensuring dependable operation in various industrial applications.
Customizable Designs:
- Can be tailored to specific automation requirements, allowing for unique layouts and configurations to suit different applications.
Ease of Integration:
- Compatible with standard components and communication protocols, facilitating seamless integration into existing industrial systems.

FAQ

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

Product Description

Specification:
PCB layers:	1-42layers
PCB materials:	CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size:	620mm*1100mm
PCB certificate:	RoHS Directive-Compliant
PCB Thickness:	1.6 ±0.1mm
Out Layer Copper Thickness:	0.5-5oz
Inner Layer Copper Thickness:	0.5-4oz
PCB max. board thickness:	6.0mm
Minimum Hole Size:	0.20mm
Minimum Line Width/Space:	3/3mil
Min. S/M Pitch:	0.1mm(4mil)
Plate Thickness and Aperture Ratio :	30:1
Minimum Hole Copper:	20µm
Hole Dia. Tolerance(PTH):	±0.075mm(3mil)
Hole dia. Tolerance(NPTH):	±0.05mm (2mil)
Hole Position Deviation:	±0.05mm (2mil)
Outline Tolerance:	±0.05mm (2mil)
PCB solder mask:	Black, white, yellow
PCB surface finished:	HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend:	White
E-test:	100% AOI, X-ray, Flying probe test.
Outline:	Rout and Score/V-cut
Inspection Standard:	IPC-A-610CCLASSII
Certificates:	UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports:	Final Inspection, E-test, Solderability Test, Micro Section and More
