About TECircuit
Found: TECircuit has been operating since 2004.
Location: An electronics manufacturing service(EMS) provider located in
Shenzhen China.
Item: Customizable EMS PCB, offers a full range of one-stop shop services.
Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.
Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS
and REACH.
Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly
production capacity : 100,000 m2
TECircuit Capability
1. Schematic development and PCB layout(what we use is Protel,
PADS)
2. PCB fabrication from 1-40 layers. (single side, double side,
multi-layer, HDI board, bury and blind holes board etc)
3. Material procurement and management
4. Prototype and NPI (new product introduction)
5. PCBA (SMD Placement include 0402,QFP,QFN,BGA etc )and through
hole assembly, in-circuit test and functional testing)
6. IC pre-programming and Function verification & burning test
7. Complete Unit assembly (Box building include the plastic,
screen, metal enclosure, membrane, coils, wire harness etc.)
8. Environmental Coating
9. Engineering including end of life components, obsolete component
replace and design support for circuit, metal and plastic enclosure
and pac
FAQ
Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface
finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)
Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA
Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP
for our customers in the whole process. All documents from
customers are never shared with any 3rd parties.
Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer
provided shipment method is acceptable.
Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is
acceptable.

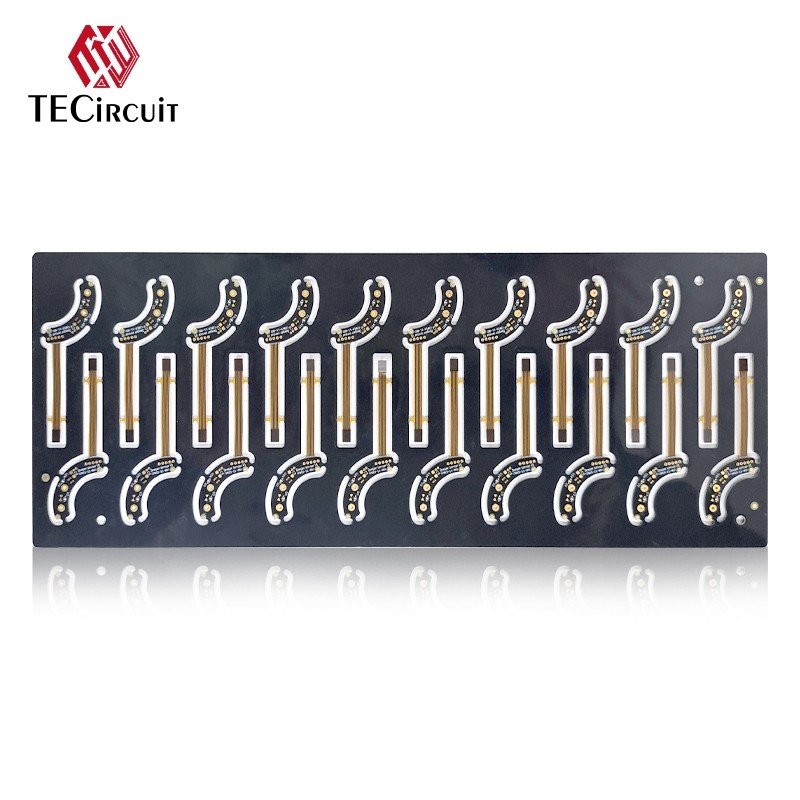

Product Description
| Specification: |
| PCB layers: | 1-42layers |
| PCB materials: | CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free |
| PCB max. board size: | 620mm*1100mm |
| PCB certificate: | RoHS Directive-Compliant |
| PCB Thickness: | 1.6 ±0.1mm |
| Out Layer Copper Thickness: | 0.5-5oz |
| Inner Layer Copper Thickness: | 0.5-4oz |
| PCB max. board thickness: | 6.0mm |
| Minimum Hole Size: | 0.20mm |
| Minimum Line Width/Space: | 3/3mil |
| Min. S/M Pitch: | 0.1mm(4mil) |
| Plate Thickness and Aperture Ratio : | 30:1 |
| Minimum Hole Copper: | 20µm |
| Hole Dia. Tolerance(PTH): | ±0.075mm(3mil) |
| Hole dia. Tolerance(NPTH): | ±0.05mm (2mil) |
| Hole Position Deviation: | ±0.05mm (2mil) |
| Outline Tolerance: | ±0.05mm (2mil) |
| PCB solder mask: | Black, white, yellow |
| PCB surface finished: | HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold
finger,Peelable,Immersion Silver |
| Legend: | White |
| E-test: | 100% AOI, X-ray, Flying probe test. |
| Outline: | Rout and Score/V-cut |
| Inspection Standard: | IPC-A-610CCLASSII |
| Certificates: | UL (E503048),ISO9001/ISO14001/IATF16949 |
| Outgoing Reports: | Final Inspection, E-test, Solderability Test, Micro Section and
More |
