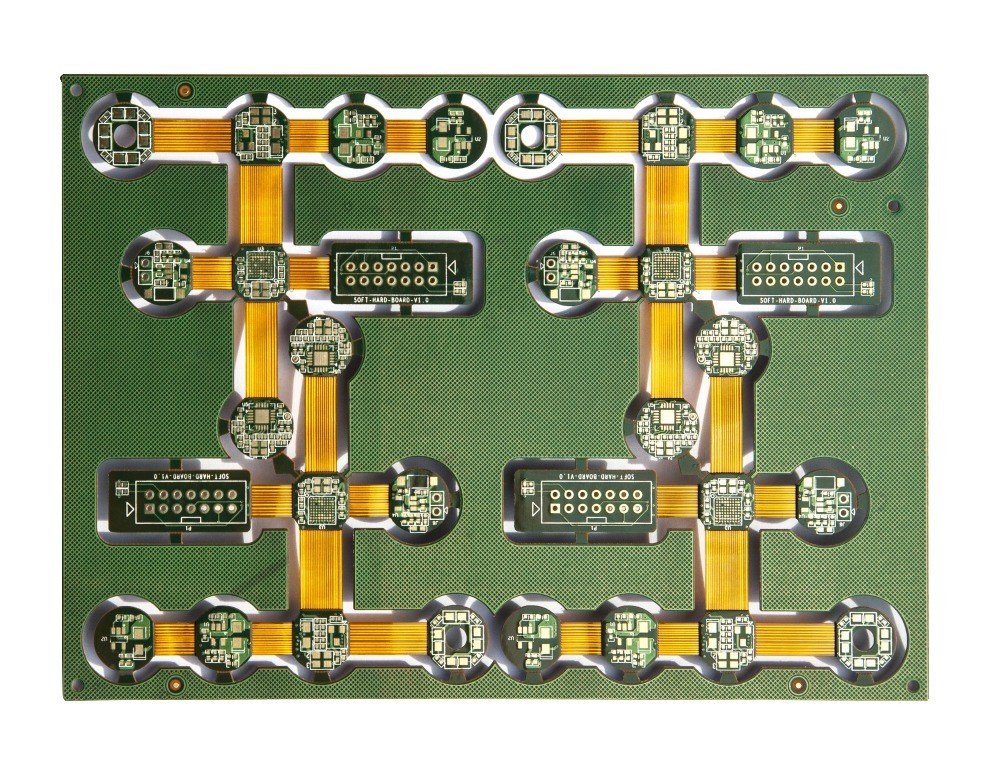

OEM MultiLayer FPC RF Rigid Flexible PCB Power Station Printed Circuit Boards

Ask Lasest Price
Brand Name :	TECircuit
Model Number :	TEC0193
Certification :	UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W
Price :	USD 1.99 ~ USD9.99/pcs
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50000 pcs/month
Delivery Time :	5-15 wotk days

Add to Cart

Product Details
Company Profile

OEM MultiLayer FPC RF Rigid Flexible PCB Power Station Printed Circuit Boards

Product Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

Energy Management Systems:
- Used in systems that monitor and control power generation, distribution, and consumption within power stations.
Control Panels:
- Employed in control interfaces for monitoring equipment status, alarms, and operational data, ensuring efficient management of power generation.
Sensor Integration:
- Integrated with various sensors (temperature, pressure, flow) that provide critical data for optimizing power generation processes.
SCADA Systems:
- Used in Supervisory Control and Data Acquisition (SCADA) systems for real-time monitoring and control of power station operations.
Communication Systems:
- Employed in communication modules that facilitate data exchange between different parts of the power station and external networks.
Renewable Energy Integration:
- Used in hybrid systems that combine renewable energy sources (like solar and wind) with traditional power generation methods.
Transformer Monitoring:
- Integrated into systems that monitor the health and performance of transformers, ensuring reliability in power distribution.
Battery Backup Systems:
- Employed in uninterruptible power supply (UPS) systems that provide backup power for critical control systems during outages.
Load Management Systems:
- Used in systems that manage and optimize load distribution across the power station, enhancing efficiency and reducing waste.
Inverter Systems:
- Integrated into inverters that convert DC from renewable sources into AC for grid compatibility, ensuring efficient energy conversion.

Product Features

Flexibility:
- RFPCBs can be designed to fit intricate layouts and configurations within power station equipment, optimizing space.
Space Efficiency:
- The rigid-flex design allows for compact assemblies that can accommodate multiple functions in a limited footprint.
High Signal Integrity:
- Designed to minimize signal loss and electromagnetic interference, ensuring reliable data transmission and control.
Durability:
- Built to withstand harsh industrial environments, including temperature extremes, humidity, and mechanical vibrations.
Thermal Management:
- Effective heat dissipation properties help maintain optimal operating conditions for electronic components, enhancing reliability.
Customizability:
- Can be tailored to meet specific operational requirements, allowing for unique configurations based on power station needs.
Ease of Assembly:
- Simplifies the manufacturing and assembly process, enabling efficient integration into complex systems.
Lightweight:
- The lightweight nature of RFPCBs contributes to the overall efficiency of power station equipment.
Resistance to Environmental Factors:
- Often treated to resist moisture, dust, and chemicals, ensuring reliable operation in various operating conditions.
Compliance with Industry Standards:
- Manufactured to meet relevant safety and operational standards, ensuring dependable performance in critical power generation applications.

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

Product Description

Specification:
PCB layers:	1-42layers
PCB materials:	CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size:	620mm*1100mm
PCB certificate:	RoHS Directive-Compliant
PCB Thickness:	1.6 ±0.1mm
Out Layer Copper Thickness:	0.5-5oz
Inner Layer Copper Thickness:	0.5-4oz
PCB max. board thickness:	6.0mm
Minimum Hole Size:	0.20mm
Minimum Line Width/Space:	3/3mil
Min. S/M Pitch:	0.1mm(4mil)
Plate Thickness and Aperture Ratio :	30:1
Minimum Hole Copper:	20µm
Hole Dia. Tolerance(PTH):	±0.075mm(3mil)
Hole dia. Tolerance(NPTH):	±0.05mm (2mil)
Hole Position Deviation:	±0.05mm (2mil)
Outline Tolerance:	±0.05mm (2mil)
PCB solder mask:	Black, white, yellow
PCB surface finished:	HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend:	White
E-test:	100% AOI, X-ray, Flying probe test.
Outline:	Rout and Score/V-cut
Inspection Standard:	IPC-A-610CCLASSII
Certificates:	UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports:	Final Inspection, E-test, Solderability Test, Micro Section and More
