Multilayer Rigid Flex Printed Circuit Board , Rigid Flex Board For Car Display

Ask Lasest Price
Brand Name :	TECircuit
Model Number :	TEC0188
Certification :	UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W
Price :	USD 1.99 ~ USD9.99/pcs
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50000 pcs/month
Delivery Time :	5-15 wotk days

Add to Cart

Product Details
Company Profile

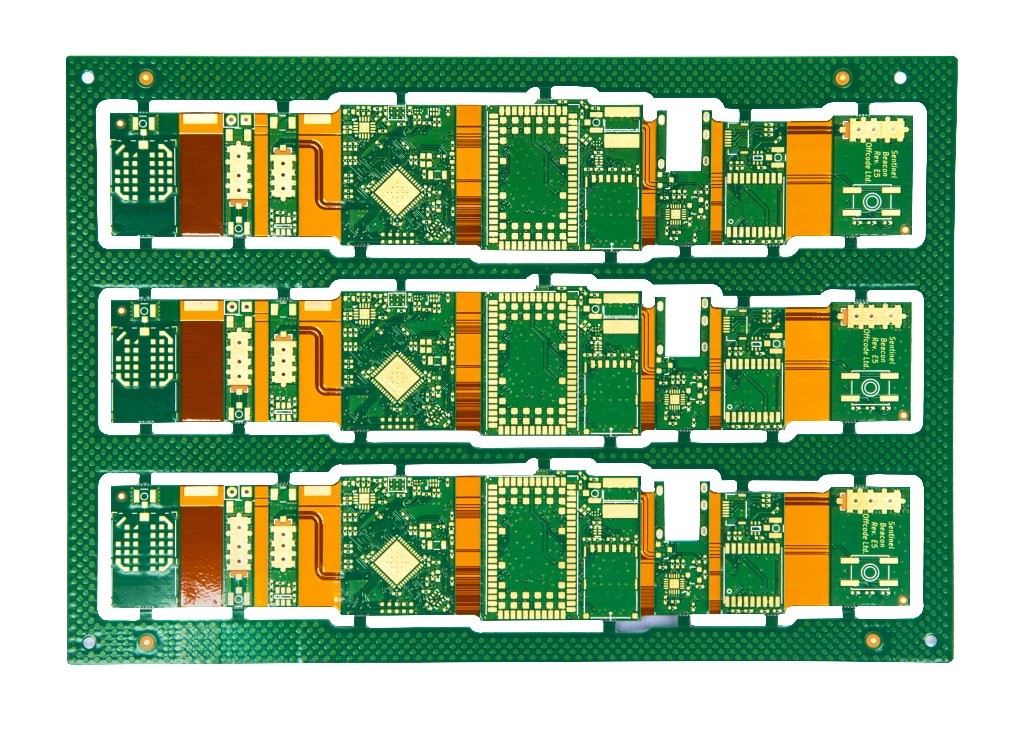

Multilayer Rigid Flex Printed Circuit Board , Rigid Flex Board For Car Display

Product Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

Instrument Clusters:
- Used to connect gauges and displays like speedometers, tachometers, and fuel indicators, providing essential information to the driver.
Infotainment Screens:
- Employed in multimedia systems to connect touchscreens that display navigation, audio, and video content.
Head-Up Displays (HUD):
- Integrated into systems that project critical information onto the windshield, enhancing driver awareness without distraction.
Climate Control Displays:
- Used in interfaces that show temperature settings and adjust HVAC controls, contributing to passenger comfort.
Rear-Seat Entertainment Systems:
- Employed in displays for rear-seat passengers, connecting video sources and controls for entertainment.
Navigation Systems:
- Integrated into GPS units that provide real-time maps, directions, and traffic information to drivers.
Tire Pressure Monitoring Systems (TPMS):
- Used to display tire pressure data and alerts, ensuring vehicle safety and maintenance.
Vehicle Status Indicators:
- Employed in displays that show system alerts (e.g., engine status, oil pressure) and diagnostics.
Bluetooth and Connectivity Interfaces:
- Integrated into displays that facilitate hands-free calling and media streaming from mobile devices.
Customization and Personalization Features:
- Used in systems that allow users to customize display themes and settings based on personal preferences.

Product Features

Flexibility:
- RFPCBs can be shaped to fit the complex designs of car displays, optimizing space and ensuring proper fitment.
Space Efficiency:
- The rigid-flex design enables compact layouts, which is essential for modern vehicles with integrated display technologies.
High Signal Integrity:
- Designed to minimize signal loss and interference, ensuring clear and reliable display performance.
Durability:
- Built to withstand automotive conditions, including temperature extremes, humidity, and vibrations.
Thermal Management:
- Effective heat dissipation properties help maintain optimal operating temperatures for electronic components.
Customizability:
- Can be tailored to meet specific display requirements, allowing for unique configurations based on vehicle models.
Ease of Assembly:
- Simplifies the manufacturing process, enabling efficient integration into complex dashboard systems.
Lightweight:
- The lightweight nature of RFPCBs contributes to a reduction in overall vehicle weight, enhancing performance and fuel efficiency.
Resistance to Environmental Factors:
- Often treated to resist moisture, dust, and chemicals, ensuring reliable operation in various driving conditions.
Compliance with Automotive Standards:
- Manufactured to meet stringent automotive safety and performance standards, ensuring dependable operation in critical display applications.

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

Product Description

Specification:
PCB layers:	1-42layers
PCB materials:	CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size:	620mm*1100mm
PCB certificate:	RoHS Directive-Compliant
PCB Thickness:	1.6 ±0.1mm
Out Layer Copper Thickness:	0.5-5oz
Inner Layer Copper Thickness:	0.5-4oz
PCB max. board thickness:	6.0mm
Minimum Hole Size:	0.20mm
Minimum Line Width/Space:	3/3mil
Min. S/M Pitch:	0.1mm(4mil)
Plate Thickness and Aperture Ratio :	30:1
Minimum Hole Copper:	20µm
Hole Dia. Tolerance(PTH):	±0.075mm(3mil)
Hole dia. Tolerance(NPTH):	±0.05mm (2mil)
Hole Position Deviation:	±0.05mm (2mil)
Outline Tolerance:	±0.05mm (2mil)
PCB solder mask:	Black, white, yellow
PCB surface finished:	HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend:	White
E-test:	100% AOI, X-ray, Flying probe test.
Outline:	Rout and Score/V-cut
Inspection Standard:	IPC-A-610CCLASSII
Certificates:	UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports:	Final Inspection, E-test, Solderability Test, Micro Section and More
