Rigid Flex Printed Circuit Boards Pcb Board Manufacturing For Detection Instrument

Ask Lasest Price
Brand Name :	TECircuit
Model Number :	TEC0189
Certification :	UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W
Price :	USD 1.99 ~ USD9.99/pcs
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50000 pcs/month
Delivery Time :	5-15 wotk days

Add to Cart

Product Details
Company Profile

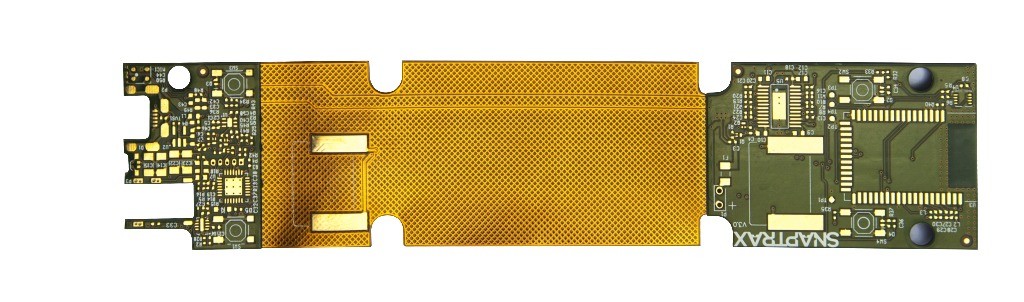

Rigid Flex Printed Circuit Boards Pcb Board Manufacturing For Detection Instrument

Product Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

Spectrometers:
- Used in devices that measure the intensity of light across different wavelengths, facilitating chemical analysis and research.
Gas Detectors:
- Employed in instruments that monitor air quality, detecting harmful gases such as CO2, CO, and volatile organic compounds (VOCs).
Environmental Monitoring Equipment:
- Integrated into devices that measure environmental parameters like temperature, humidity, and pollution levels.
Medical Diagnostic Devices:
- Used in instruments like blood analyzers and glucose meters, connecting sensors and control units for accurate health measurements.
Industrial Process Controls:
- Employed in systems that monitor parameters in manufacturing processes, ensuring quality and safety.
Radiation Detectors:
- Integrated into devices that measure exposure to ionizing radiation, used in medical and safety applications.
Ultrasonic Testing Equipment:
- Used in non-destructive testing devices to measure material properties and detect flaws.
Thermal Imaging Cameras:
- Employed in infrared cameras that detect heat patterns, useful in various applications from security to building inspections.
Flow Meters:
- Integrated into instruments that measure the flow rate of liquids and gases in various industrial applications.
Smart Sensors:
- Used in advanced detection instruments that combine multiple sensing technologies for comprehensive data collection and analysis.

Product Features

Flexibility:
- RFPCBs can be tailored to fit compact and complex designs, optimizing space within detection instruments.
Space Efficiency:
- The rigid-flex design allows for a reduction in size and weight, making it suitable for portable and handheld devices.
High Signal Integrity:
- Designed to minimize signal loss and interference, ensuring accurate and reliable data transmission from sensors.
Durability:
- Built to withstand environmental stresses, including temperature extremes, vibrations, and humidity.
Thermal Management:
- Effective heat dissipation properties help maintain optimal operating conditions for sensitive electronic components.
Customizability:
- Can be tailored to meet specific application requirements, allowing for unique configurations based on the detection technology used.
Ease of Assembly:
- Simplifies the manufacturing process, enabling efficient integration into complex detection systems.
Lightweight:
- The lightweight nature of RFPCBs contributes to the overall portability of detection instruments.
Resistance to Environmental Factors:
- Often treated to resist moisture, dust, and chemicals, enhancing reliability in various operating conditions.
Compliance with Industry Standards:
- Manufactured to meet relevant safety and performance standards, ensuring dependable operation in critical detection applications.

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

Product Description

Specification:
PCB layers:	1-42layers
PCB materials:	CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size:	620mm*1100mm
PCB certificate:	RoHS Directive-Compliant
PCB Thickness:	1.6 ±0.1mm
Out Layer Copper Thickness:	0.5-5oz
Inner Layer Copper Thickness:	0.5-4oz
PCB max. board thickness:	6.0mm
Minimum Hole Size:	0.20mm
Minimum Line Width/Space:	3/3mil
Min. S/M Pitch:	0.1mm(4mil)
Plate Thickness and Aperture Ratio :	30:1
Minimum Hole Copper:	20µm
Hole Dia. Tolerance(PTH):	±0.075mm(3mil)
Hole dia. Tolerance(NPTH):	±0.05mm (2mil)
Hole Position Deviation:	±0.05mm (2mil)
Outline Tolerance:	±0.05mm (2mil)
PCB solder mask:	Black, white, yellow
PCB surface finished:	HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend:	White
E-test:	100% AOI, X-ray, Flying probe test.
Outline:	Rout and Score/V-cut
Inspection Standard:	IPC-A-610CCLASSII
Certificates:	UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports:	Final Inspection, E-test, Solderability Test, Micro Section and More
