High Frequency Multi Layer PCB Circuit Board Golden Finger FR4 TG150 Surface Tension

Ask Lasest Price
Brand Name :	TECircuit
Model Number :	TEC0018
Certification :	UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W
Price :	USD 1.99 ~ USD9.99/pcs
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50000 pcs/month
Delivery Time :	5-15 wotk days

Add to Cart

Product Details
Company Profile

High Frequency Multi Layer PCB Circuit Board Golden Finger FR4 TG150 Surface Tension

Product Description

Layer Count:4
Material:FR4 TG150
Thickness:1.6mm
Min.Hole Size:0.4mm,unaccept solder mask in vias
Copper Thickness:Inner 1oz/Outer 1 oz
Dimension:182.5*135mm/1UF
Surface Finish:Immersion Gold 2u”
Application:Surface Tension 238mN/m

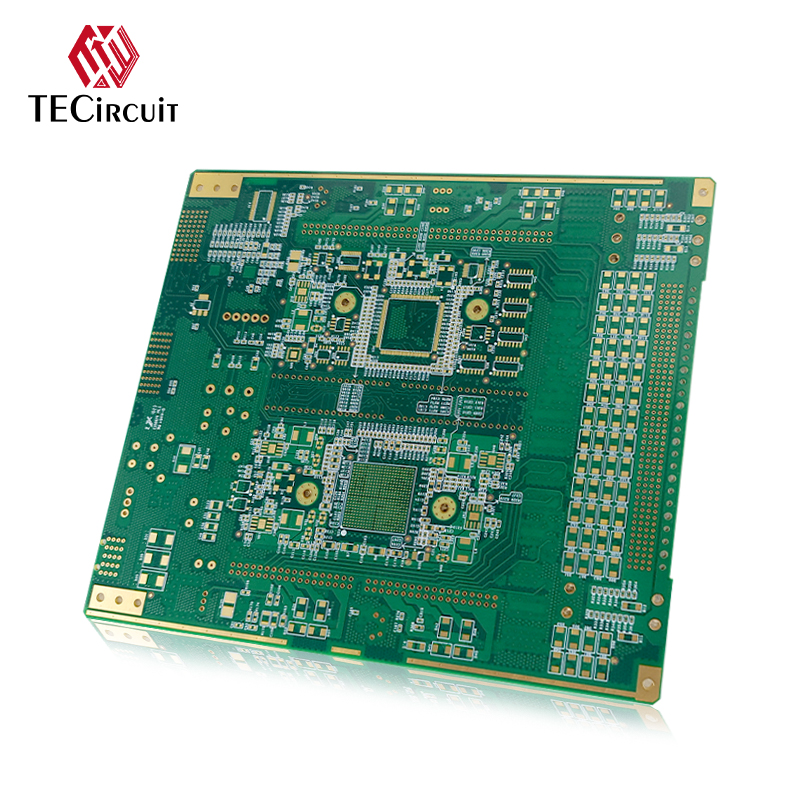

Product Images

High Frequency Multi Layer PCB Circuit Board Golden Finger FR4 TG150 Surface Tension

About TECircuit

TECircuit Electronic group is an electronics manufacturing service (EMS) provider. Over the past 10+ years, we have gained extensive experience in the area of manufacturing and assembling PCB’s, allowing us to establish ourselves as a reputable tech company both at home and abroad. Having completed thousands of orders for thousands of customers, we have comprehensive knowledge on how to properly produce high quality PCB’s for nearly every industry that uses them, including Industrial, Automotive, Agricultural, Defense, Aerospace, Medical, Security, Do it Yourself (DIY), etc.

Product Description

Specification:
PCB layers:	1-42layers
PCB materials:	CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size:	620mm*1100mm
PCB certificate:	RoHS Directive-Compliant
PCB Thickness:	1.6 ±0.1mm
Out Layer Copper Thickness:	0.5-5oz
Inner Layer Copper Thickness:	0.5-4oz
PCB max. board thickness:	6.0mm
Minimum Hole Size:	0.20mm
Minimum Line Width/Space:	3/3mil
Min. S/M Pitch:	0.1mm(4mil)
Plate Thickness and Aperture Ratio :	30:1
Minimum Hole Copper:	20µm
Hole Dia. Tolerance(PTH):	±0.075mm(3mil)
Hole dia. Tolerance(NPTH):	±0.05mm (2mil)
Hole Position Deviation:	±0.05mm (2mil)
Outline Tolerance:	±0.05mm (2mil)
PCB solder mask:	Black, white, yellow
PCB surface finished:	HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend:	White
E-test:	100% AOI, X-ray, Flying probe test.
Outline:	Rout and Score/V-cut
Inspection Standard:	IPC-A-610CCLASSII
Certificates:	UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports:	Final Inspection, E-test, Solderability Test, Micro Section and More
