    Precision Metal Core Circuit Board MC Rigid PCB For Lumination Equipment

    Ask Lasest Price
    Brand Name : TECircuit
    Model Number : TEC0147
    Certification : UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W
    Price : USD 1.99 ~ USD9.99/pcs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000 pcs/month
    Delivery Time : 5-15 wotk days
    • Product Details
    • Company Profile

    Precision Metal Core Circuit Board MC Rigid PCB For Lumination Equipment

    Product Images

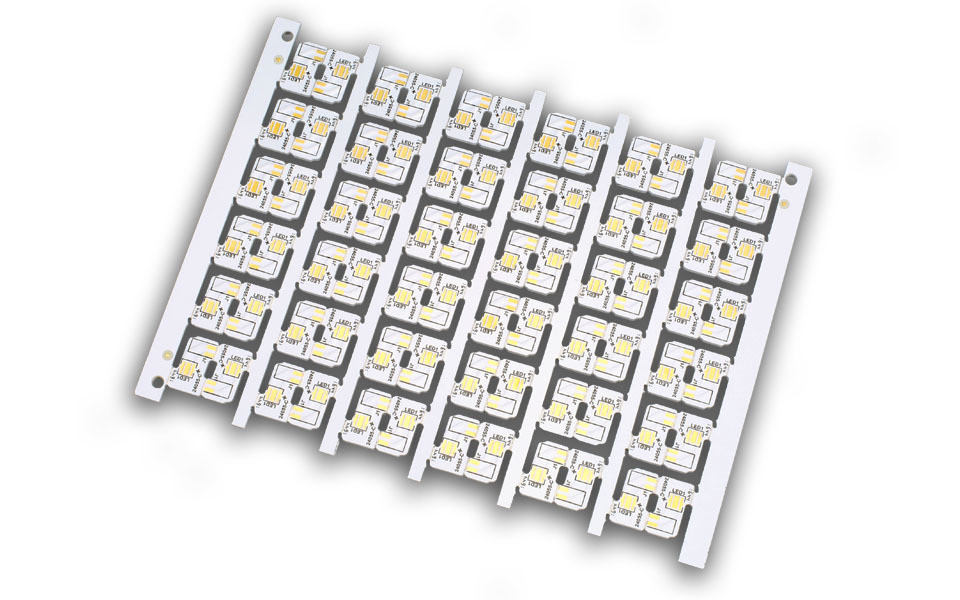

    Precision Metal Core Circuit Board MC Rigid PCB For Lumination Equipment


    About TECircuit


    Found: TECircuit has been operating since 2004.

    Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.


    Item: Customizable EMS PCB, offers a full range of one-stop
    shop services.

    Service:
    Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing,
    Box-Building, Testing.


    Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

    Factory Pictures:
    Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2


    Product Applications


    • Commercial Lighting:

      • Used in fixtures such as LED troffers and panel lights, providing efficient thermal management for high-performance lighting in offices and retail spaces.
    • Architectural Lighting:

      • Employed in architectural applications to highlight buildings and landscapes, allowing for vibrant and dynamic lighting effects.
    • Industrial Lighting:

      • Integrated into high-bay and low-bay lighting fixtures for warehouses and factories, ensuring durability and effective heat dissipation.
    • Emergency and Exit Lighting:

      • Used in emergency lighting systems that require reliable performance and quick response in critical situations.
    • Track and Accent Lighting:

      • Employed in track lighting systems and accent fixtures, allowing for flexible and focused illumination in various settings.
    • Theatrical Lighting:

      • Integrated into stage and theater lighting systems where high-intensity illumination and color mixing are essential.
    • Outdoor Lighting:

      • Used in streetlights, landscape lighting, and architectural floodlights, providing robust performance in outdoor environments.
    • Retail Display Lighting:

      • Employed in display cases and merchandise lighting, enhancing product visibility and appeal.
    • Medical Examination Lights:

      • Used in surgical and examination lights, where consistent and bright illumination is crucial for accurate diagnostics.
    • Smart Lighting Systems:

      • Integrated into smart lighting solutions that allow for remote control and automation, enhancing user convenience and energy efficiency.

    Product Features

    1. High Thermal Conductivity:

      • Metal core PCBs (MCPCBs) provide excellent heat dissipation, essential for maintaining LED performance and extending lifespan.
    2. Durability:

      • Metal substrates are robust and can withstand various environmental conditions, making them suitable for indoor and outdoor applications.
    3. Low Coefficient of Thermal Expansion (CTE):

      • The CTE of metal cores is compatible with that of LED components, reducing thermal stress and enhancing reliability.
    4. High Electrical Performance:

      • Offers low electrical resistance, minimizing power losses and improving overall efficiency in lighting applications.
    5. Compact Design:

      • Allows for slimmer profiles and flexible configurations, accommodating various design requirements.
    6. Improved Light Efficiency:

      • Facilitates uniform light distribution across the fixture, reducing hotspots and enhancing user comfort.
    7. Versatile Design Options:

      • Can be customized in size, shape, and LED configuration to meet specific lighting application needs.
    8. Easy Integration:

      • Compatible with various LED technologies, simplifying assembly and installation processes.
    9. Cost-Effectiveness:

      • While typically more expensive than standard FR4 PCBs, the benefits in thermal management and reliability justify the investment.
    10. Regulatory Compliance:

      • Designed to meet industry standards for safety and performance, ensuring reliable operation in various lumination applications.

    FAQ

    Question 1: What is needed for a quotation?
    Answer:
    PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
    PCBA: PCB information, BOM,(Testing documents...)

    Q2: What file formats do you accept for production?
    Answer:
    PCB Gerber file
    BOM list for PCB
    Test method for PCBA


    Q3: Are my files safe?
    Answer:
    Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

    Q4: What is the shipment method?
    Answer:

    We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

    Q5: What is the payment method?
    Answer:
    Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

    Product Description

    Specification:
    PCB layers:1-42layers
    PCB materials:CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
    PCB max. board size:620mm*1100mm
    PCB certificate:RoHS Directive-Compliant
    PCB Thickness:1.6 ±0.1mm
    Out Layer Copper Thickness:0.5-5oz
    Inner Layer Copper Thickness:0.5-4oz
    PCB max. board thickness:6.0mm
    Minimum Hole Size:0.20mm
    Minimum Line Width/Space:3/3mil
    Min. S/M Pitch:0.1mm(4mil)
    Plate Thickness and Aperture Ratio :30:1
    Minimum Hole Copper:20µm
    Hole Dia. Tolerance(PTH):±0.075mm(3mil)
    Hole dia. Tolerance(NPTH):±0.05mm (2mil)
    Hole Position Deviation:±0.05mm (2mil)
    Outline Tolerance:±0.05mm (2mil)
    PCB solder mask:Black, white, yellow
    PCB surface finished:HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
    Legend:White
    E-test:100% AOI, X-ray, Flying probe test.
    Outline:Rout and Score/V-cut
    Inspection Standard:IPC-A-610CCLASSII
    Certificates:UL (E503048),ISO9001/ISO14001/IATF16949
    Outgoing Reports:Final Inspection, E-test, Solderability Test, Micro Section and More
