Power Board ALPCB Metal Core PCB MC Rigid PCB For Telecommunications

Ask Lasest Price
Brand Name :	TECircuit
Model Number :	TEC0145
Certification :	UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949, ROHS,REACH. W
Price :	USD 1.99 ~ USD9.99/pcs
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50000 pcs/month
Delivery Time :	5-15 wotk days

Add to Cart

Product Details
Company Profile

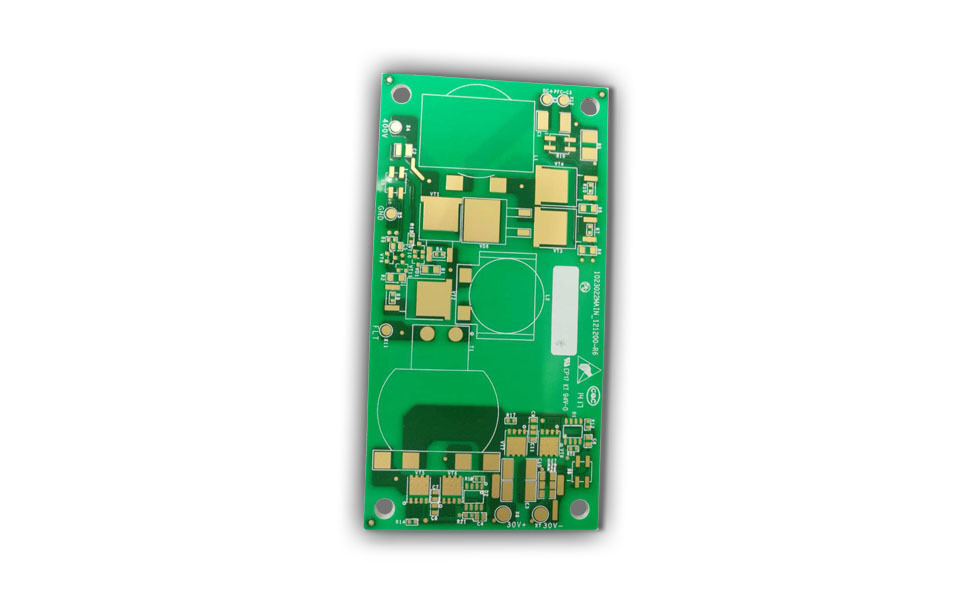

Power Board ALPCB Metal Core PCB MC Rigid PCB For Telecommunications

Product Images

About TECircuit

Found: TECircuit has been operating since 2004.

Location: An electronics manufacturing service(EMS) provider located in Shenzhen China.

Item: Customizable EMS PCB, offers a full range of one-stop shop services.

Service: Printed Circuit Board (PCB)and Printed Circuit Board Assembly(PCBA), Flexible Printed Circuit Board(FPC), Components Sourcing, Box-Building, Testing.

Quality Assurance: UL,ISO 9001, ISO 14001, ISO 13485, ITAF 16949 andcomplied with ROHS and REACH.

Factory Pictures:
Company's own plant : 50,000 sqm; Employees : 930+; Monthly production capacity : 100,000 m2

Product Applications

Base Stations:
- Used in cellular base stations to convert and manage power for radio frequency (RF) amplifiers and other critical components.
Network Routers and Switches:
- Employed in the power supply units of routers and switches to ensure stable and efficient power delivery for data processing.
Repeaters and Amplifiers:
- Integrated into power boards for signal repeaters and amplifiers, ensuring reliable operation and energy efficiency.
Optical Network Equipment:
- Used in optical network terminals (ONTs) and other fiber optic equipment that require precise power management.
Telecom Indoor Equipment:
- Employed in power distribution units (PDUs) within telecom facilities to manage power for various devices.
VoIP Systems:
- Integrated into power boards for Voice over Internet Protocol (VoIP) systems, ensuring consistent power for communication devices.
Microwave Communication Systems:
- Used in microwave relay stations where efficient power management is essential for signal transmission.
Remote Radio Heads (RRHs):
- Employed in remote radio head systems that operate at high frequencies and require effective thermal management.
Power over Ethernet (PoE) Devices:
- Used in PoE switches and injectors to provide power alongside data over Ethernet cables.
Telecommunications Backhaul:
- Integrated into backhaul equipment that connects remote sites to the core network, ensuring reliable power supply.

Product Features

High Thermal Conductivity:
- Aluminum PCBs effectively dissipate heat generated by high-power components, enhancing performance and reliability.
Durability:
- The robust aluminum substrate withstands mechanical stresses and varying environmental conditions, making it suitable for outdoor and indoor telecom applications.
Low Coefficient of Thermal Expansion (CTE):
- The CTE of aluminum is compatible with that of many electronic components, reducing thermal stress and improving reliability.
Electrical Insulation:
- Provides excellent electrical insulation, ensuring safe operation in high-voltage telecommunications environments.
Compact Design:
- Allows for thinner and lighter designs, which is beneficial for space-constrained equipment in telecommunications.
High Reliability:
- Offers long-term stability and durability crucial for mission-critical telecommunications applications.
Customizability:
- Can be tailored to meet specific design requirements, including layout, thickness, and surface finishes.
Ease of Manufacturing:
- Compatible with standard PCB manufacturing processes, facilitating efficient production and assembly.
Cost-Effectiveness:
- While typically more expensive than standard FR4 PCBs, the long-term benefits in thermal management and reliability often justify the investment.
Regulatory Compliance:
- Designed to meet industry standards for safety and performance, ensuring reliable operation in diverse telecommunications applications.

FAQ

Question 1: What is needed for a quotation?
Answer:
PCB: QTY, Gerber file, and Technical Requirements( material/surface finish treatment/copper thickness/board thickness,...)
PCBA: PCB information, BOM,(Testing documents...)

Q2: What file formats do you accept for production?
Answer:
PCB Gerber file
BOM list for PCB
Test method for PCBA

Q3: Are my files safe?
Answer:
Your files are held completely safe and secure. We protect the IP for our customers in the whole process. All documents from customers are never shared with any 3rd parties.

Q4: What is the shipment method?
Answer:
We can offer FedEx /DHL / TNT / UPS for shipment. Also, customer provided shipment method is acceptable.

Q5: What is the payment method?
Answer:
Telegraphic Transfer in advance (Advance TT, T/T), PayPal is acceptable.

Product Description

Specification:
PCB layers:	1-42layers
PCB materials:	CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
PCB max. board size:	620mm*1100mm
PCB certificate:	RoHS Directive-Compliant
PCB Thickness:	1.6 ±0.1mm
Out Layer Copper Thickness:	0.5-5oz
Inner Layer Copper Thickness:	0.5-4oz
PCB max. board thickness:	6.0mm
Minimum Hole Size:	0.20mm
Minimum Line Width/Space:	3/3mil
Min. S/M Pitch:	0.1mm(4mil)
Plate Thickness and Aperture Ratio :	30:1
Minimum Hole Copper:	20µm
Hole Dia. Tolerance(PTH):	±0.075mm(3mil)
Hole dia. Tolerance(NPTH):	±0.05mm (2mil)
Hole Position Deviation:	±0.05mm (2mil)
Outline Tolerance:	±0.05mm (2mil)
PCB solder mask:	Black, white, yellow
PCB surface finished:	HASL Leadfree,Immersion ENIG,Chem Tin,Flash Gold,OSP,Gold finger,Peelable,Immersion Silver
Legend:	White
E-test:	100% AOI, X-ray, Flying probe test.
Outline:	Rout and Score/V-cut
Inspection Standard:	IPC-A-610CCLASSII
Certificates:	UL (E503048),ISO9001/ISO14001/IATF16949
Outgoing Reports:	Final Inspection, E-test, Solderability Test, Micro Section and More
